Product Details:
|
| Product Name: | 40G QSFP+ Transceiver | Model Name: | LQ854X-3MCD030 |
|---|---|---|---|
| Data Rate: | 40Gbps | Transmission Distance: | 30KM |
| Connector Type: | MTP Or MPO | DDM: | With |
| Working Environment: | Commercial 0~70℃ | Cable Type: | MMF |
| Compatibility: | Cisco, HP, H3C, Alcatel-Lucent, MikroTik, Juniper, Huawei, ZTE, Zyxel, Etc | ||
| High Light: | CWDM 40G QSFP+ Transceiver,MPO Connector 40G QSFP+ Transceiver,30KM Optical QSFP+ Transceiver Module |
||
PN: LQ854X-3MCD030

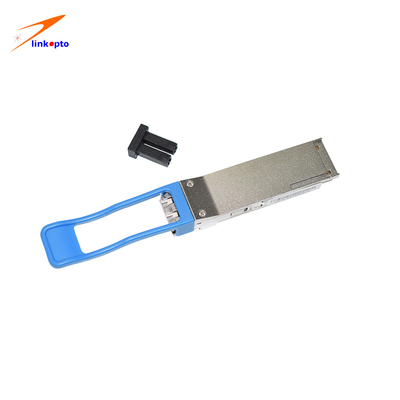

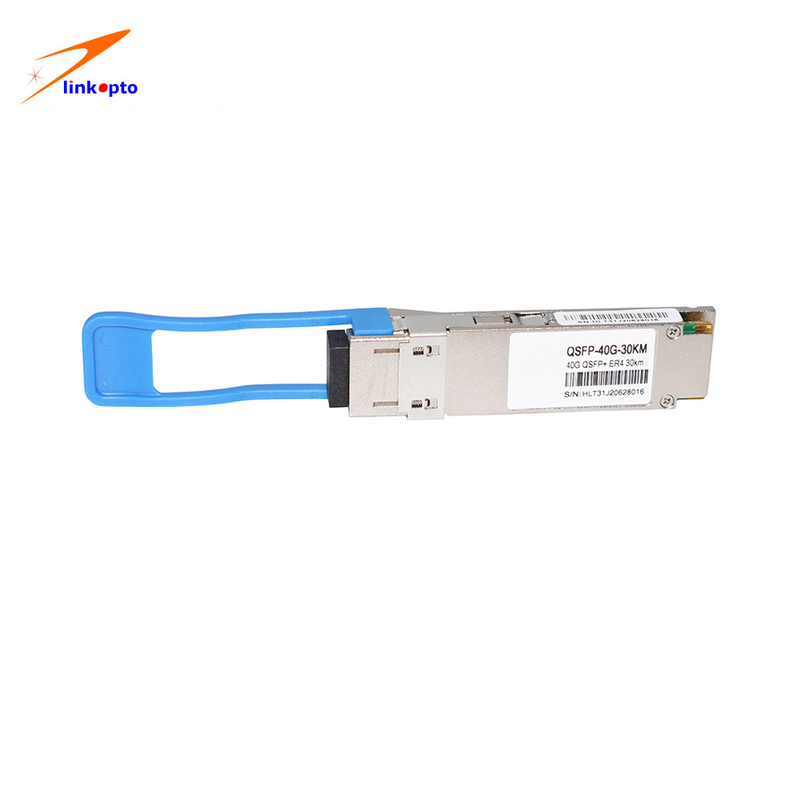

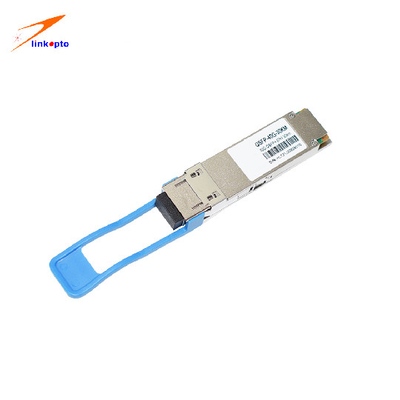

40G QSFP+ Transceiver 40G QSFP+ SR4 30KM MPO Compatible with Cisco
Features
Ø High Channel Capacity: 40 Gbps per module Ø Up to 11.1Gbps Data rate per channel
Ø Electrically hot-pluggable
Ø Digital diagnostic SFF-8436 compliant
Ø Case operating temperature range:0°C to 70°C
Ø Power dissipation < 1.5 W
Applications
Ø 40GBASE-ER4 40G Ethernet links
Ø Client-side 40G Telecom connections
Ø Infiniband QDR and DDR interconnects
Standard
Ø Compliant to IEEE 802.3ba
Ø Compliant to SFF-8436
Ø RoHS Compliant
Cisco Compatible List
| LTU Part Number | Description of Item | Cisco Part Number |
| LS8512-3LC05 | 1.25G 850nm 550m SFP LC MMF | GLC-SX-MM / MGBSX1 |
| LS3112-3LC20 | 1.25G 1310nm 20km SFP LC SMF | GLC-LH-SM / MGBLH1 / MGBLX1 |
| LS3112-3LCD40 | 1.25G 1310nm 40km SFP LC SMF | GLC-LH40-SM |
| LS5512-3LCD40 | 1.25G 1550nm 40km SFP LC SMF | 1000Base-EX |
| LS5512-3LC80 | 1.25G 1550nm 80km SFP LC SMF | GLC-ZX-SM |
| LS5512-3LCD120 | 1.25G 1550nm 120km SFP LC SMF | GLC-ZX-SM-120 |
| LS8512-3LCD05 | 1.25G 850nm 550m SFP LC MMF with DDM | GLC-SX-MMD / SFP-GE-S |
| LS3112-3LCD20 | 1.25G 1310nm 20km SFP LC SMF with DDM | GLC-LH-SMD / SFP-GE-L |
| LS5512-3LCD80 | 1.25G 1550nm 80km SFP LC SMF with DDM | GLC-ZX-SMD / SFP-GE-Z |
| LS8524-3LCD03 | 2.5G 850nm 300m SFP LC MMF | DS-SFP-FC-2G-SW |
| LS3124-3LCD20 | 2.5G 1310nm 20km SFP LC SMF | DS-SFP-FC-2G-LW |
Description
LINKOPTO EQSP854A-3MCD01 is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP) optical module that provides increased port density and total system cost savings. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps over 100 meters of multi-mode fiber.
An optical fiber ribbon cable with an MPO/MTPTM connector at each end plugs into the QSFP module receptacle.
LINKOPTO product is designed with form factor, optical / electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
LINKOPTO Package
