Product Details:
|
| Product Name: | 10G XENPAK Transceiver | Model Name: | EXP85X-4SCD03 |
|---|---|---|---|
| Wavelength: | 850nm | Data Rate: | 10Gbps |
| Transmission Distance: | 300m | Connector Type: | Duplex SC |
| DDM: | With | Working Environment: | Commercial 0~70℃ |
| Compatibility: | Cisco, HP, H3C, Alcatel-Lucent, MikroTik, Juniper, Huawei, ZTE, Zyxel, Etc | ||
| High Light: | gbic fiber connector,cisco 10gbase xenpak modules |
||
PN: EXP85X-4SCD03
10G XENPAK SR MM 850nm 300m SC GBIC Transceiver Compatible with Cisco
Features
Ø Compatible with XENPAK MSA Rev.3.0
Ø Support of IEEE802.3ae up to 300m (OM3 MMF)
Ø Power Consumption 1.8W (typ.)
Ø Temperature Range 0 to 70°C
Ø Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
Ø Adaptable Power Supply (APS:+1.2V)
Ø SC duplex connector
Ø Hot pluggable 70-pin connector with XAUI electrical interface
Ø Management and control via MDIO 2-wire interface
Ø Compatible with RoHS
Applications
Ø 10GE Ethernet switches and routers
Ø 10GE Core-routers
Ø 10GE Storage
Ø Other 10Gbps Ethernet Transmission System
Description
10Gb/s XENPAK Module is a highly integrated,Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-SR Transmission with a Vertical Cavity Surface Emitting Laser at 850nm.
The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
Mechanical Dimensions:

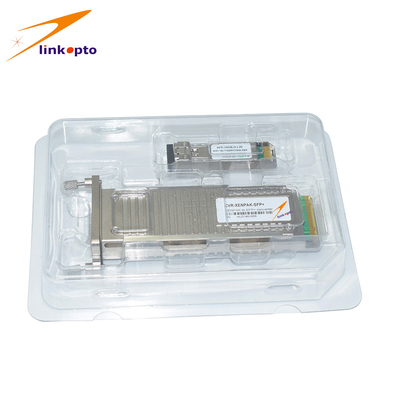

Package
